Purchase the frame components illustrated in these links from Sids Sports in Salt Lake City, UT. Sids Sports Phone Number is 801-261-0300. In the drawings the black parts are the frame components that are premanufactured for sale by Sids Sports. There are other examples of frame designes with cutting diagrams for the amount and length of the frame parts that are to be cut from TOP FENCE RAIL TUBING. Top Fence rail tubing is 1 3/8 inch OD, and has a .065 inch wall thickness.

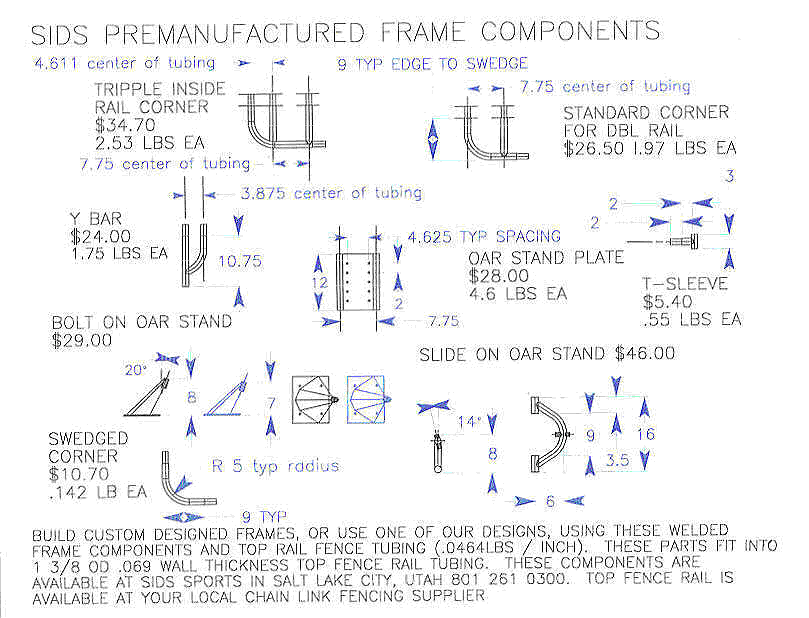

• Drawing and specifications for different fittings

• Photograph of some of the frame fittings

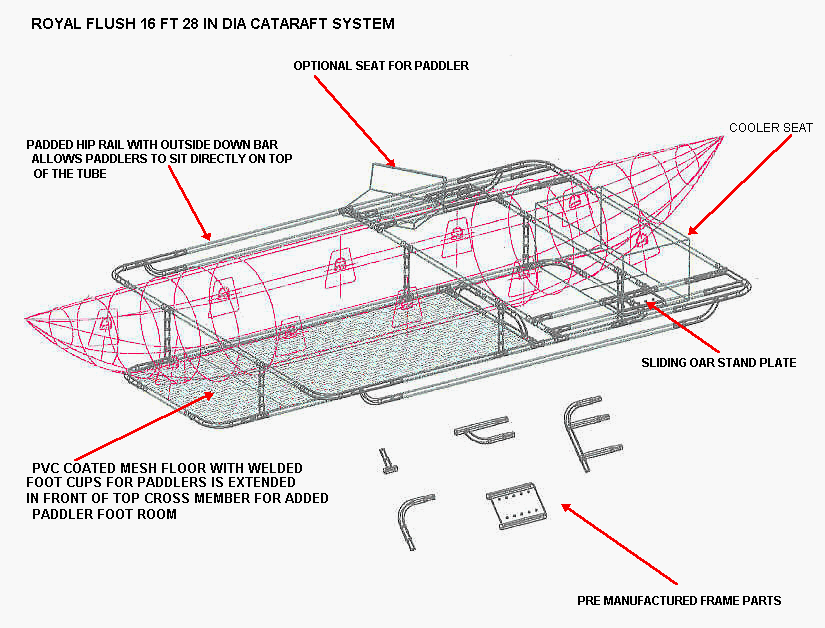

• Paddle row frame for the Royal Flush

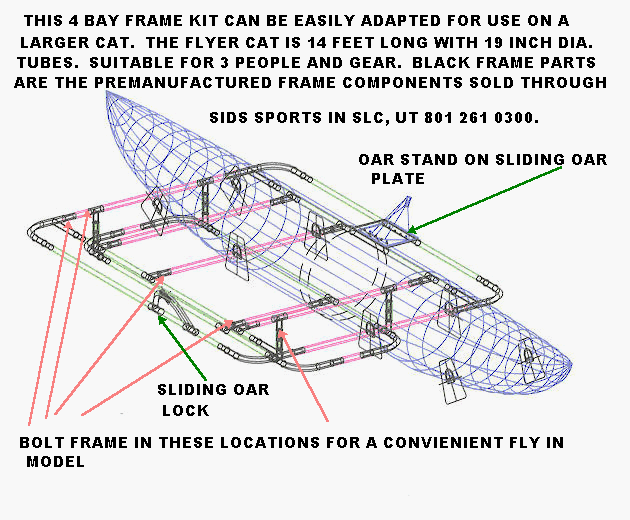

• Drawing for Flyer Cat frame concept

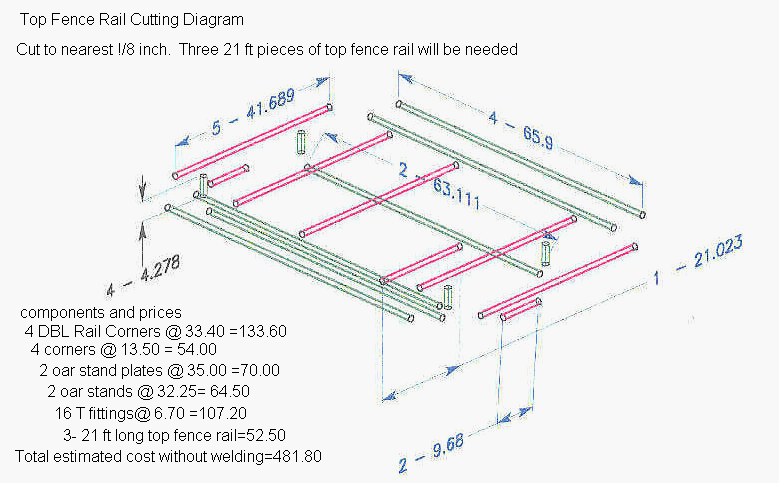

• Cutting diagram for Flyer Cat frame with prices

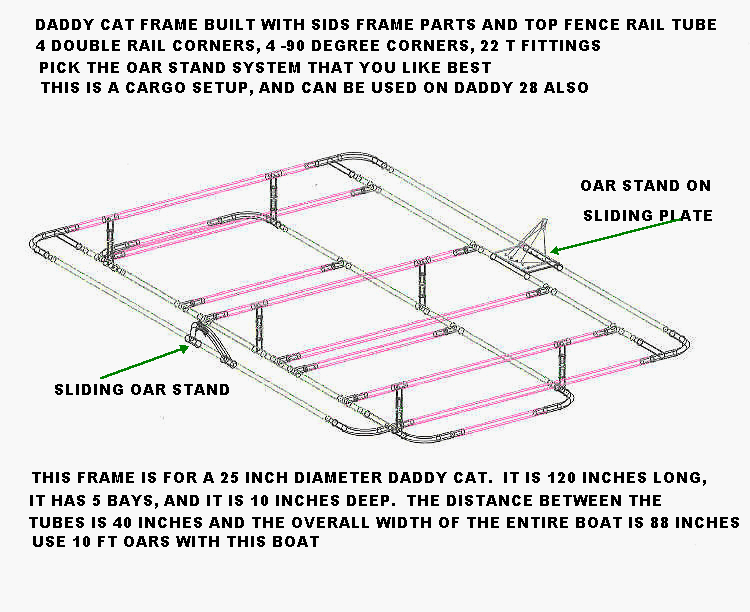

• Drawing of the Daddy Cat 5 bay frame concept

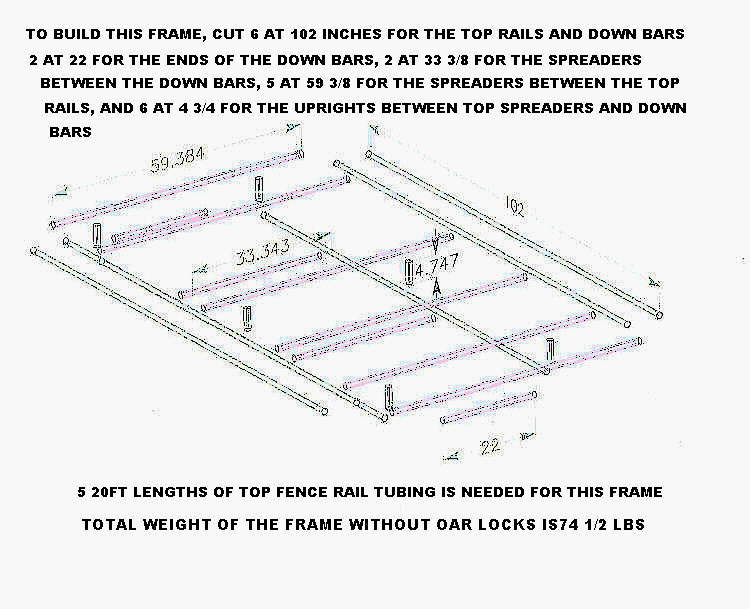

• Cutting diagram for the Daddy Cat 5 bay frame

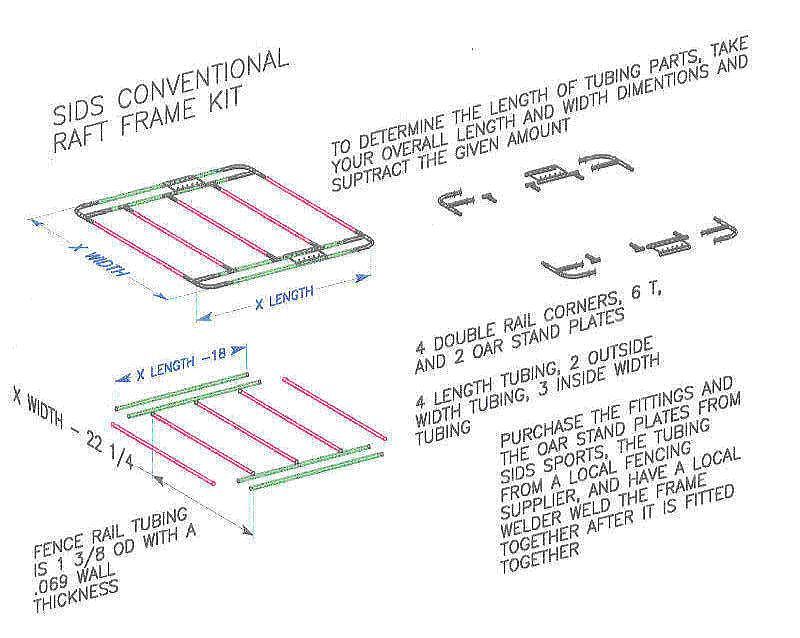

• Drawing for the conventional 4 bay raft frame
